Thickening (thicken only necessary portion to have a higher strength), cleaving (split a disk blank to T-shaped section) or rolling (transfer the contour of a roller to blank) make a part structure simpler and contribute to reduce processes and cost.
Features
Machining less groove rolling by rotary plastic process
Metal flow generated in work enhances the material strength and contributes to material saving and weight reduction.
Processing chamber concept which is completely separated from control unit / drive unit makes it possible to prevent troubles and achieve easier maintenance.
In order to improve workability and reduce change-over time, mandrel/roller exchange support system is available as an option.
Process samples

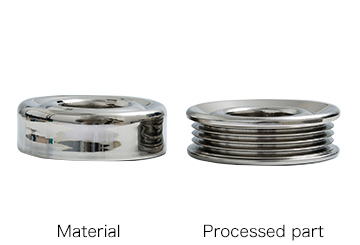

Pulley (Gear-Rolling)

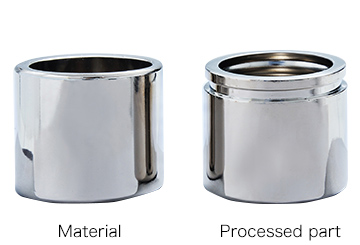

Brake Piston (Rolling)

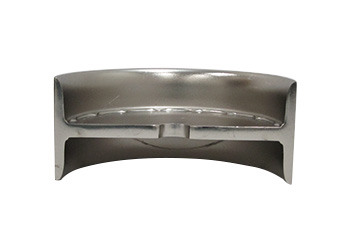

HEV Parts (Cleaving)

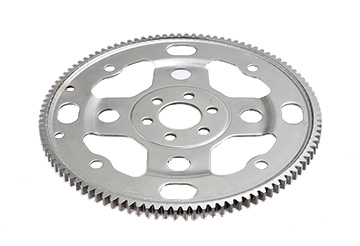

Drive plate (Thickening ・ Rolling)

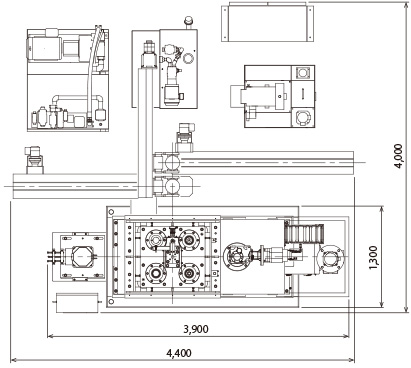

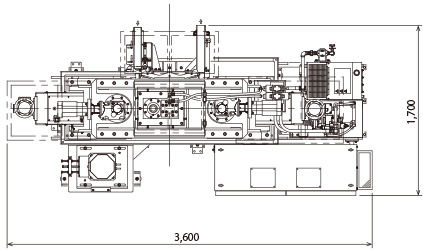

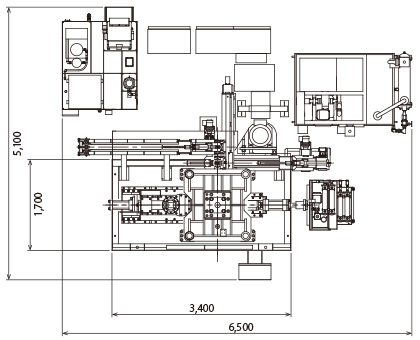

Outline Drawing
VF-V65-CNC4-T2
VD-V200X-CNC2-T1
VD-200EX-T6

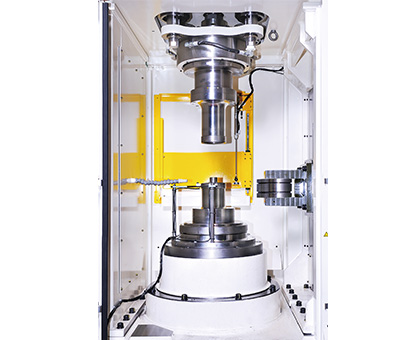

Process Area (example)
