VF-HN1179X-CNC3-T1

FeaturesSpinning

Hot spinning is used to neck or close the tube end.

Process sample

Forming rollers: 1, Control axis: 2 or 3
Process example: SCM435, Max. blank dia. 300 mm,
Max. product length 2,000 mm
Please consult us for loading/unloading units.

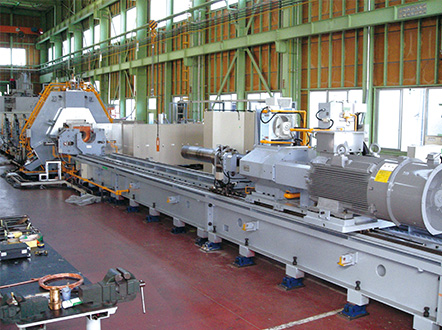

VF-H360X-CNC4-T3X

FeaturesSpinning

Hot spinning is used to reduce the tube diameter or taper the tube. The product thickness can be controlled with tension control.

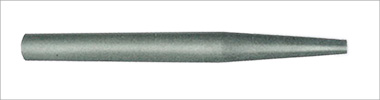

Process sample

Forming rollers: 3, Control axis: 4
Process example: STK490, Max. blank dia. 356 mm,
process length: Max. 15,500 mm Please consult us for aluminum tube taper spinning machine (cold spinning)

VF-HC120C-CNC

FeaturesSpinning

Hot spinning is used to close the tube end.

Process sample

Forming rollers: 1, Control axis: 3 (swing roller type)
Process example: STK or equivalent, Max. blank dia. 114.3 mm,
Max. product length 500 mm

VF-H150-CNC3-R2-C

FeaturesFlow Forming

For processing thin wall tubes such as the inner tube of a thermos bottle: Cold Forming with opposite rollers process a tube less than 0.1mm thickness.

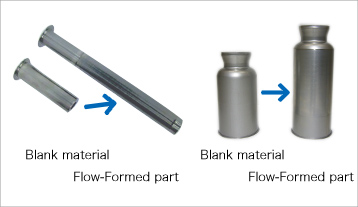

Process samples

Forming rollers: 3, Control axis: 3,
Full electric drive system reduces running cost. Process example: SUS304,
Max. blank dia. 50 mm, Max. product length 500 mm

VF-H65A-CNC3-T2-L

FeaturesFlow FormingSpinning

Flow forming / Necking of steel tubes

Process samples

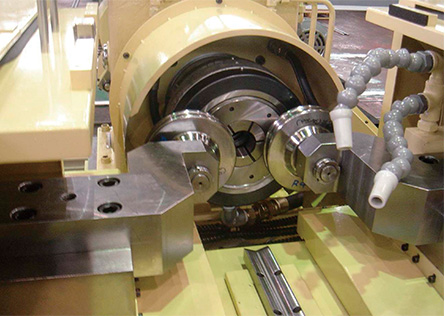

Cold forming with opposite rollers Forming rollers: 2,
Control axis: 3 Process example: STKM, Max. blank dia. 65 mm,
Max. product length 500 mm Please consult us for loading/unloading units.

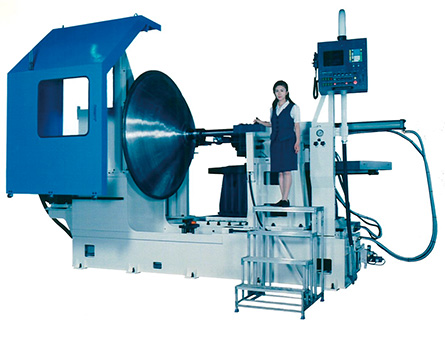

VF-T3200-NC-T6

FeaturesSpinning

Allows spinning of large diameter products with lower cost mandrels than those for pressing

Process samples

Maximum blank dia. φ3,200 and max thickness 6.0 mm for aluminum

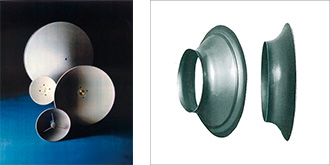

Process examples: Parabolic antennas,
satellite relaying antennas, blower cones
